Studio Sketch Models
Sketch models are a great way to show three dimensional ideas.
The sketch models below show circulation and what that looks like when it is cut off.

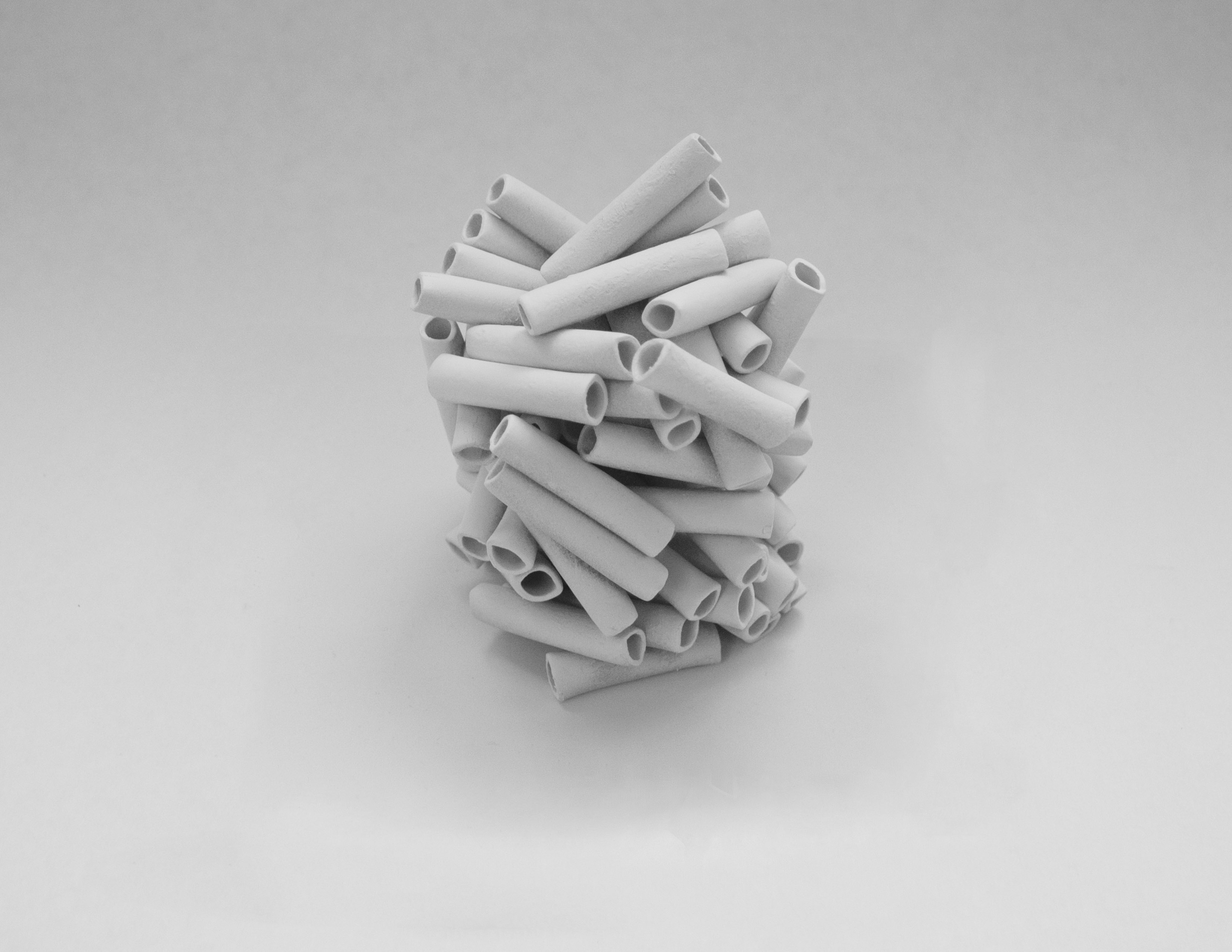

Model 01 shows circulation that has been cut off and stacked.
Model 02 shows a section cut of disconnected circulation.

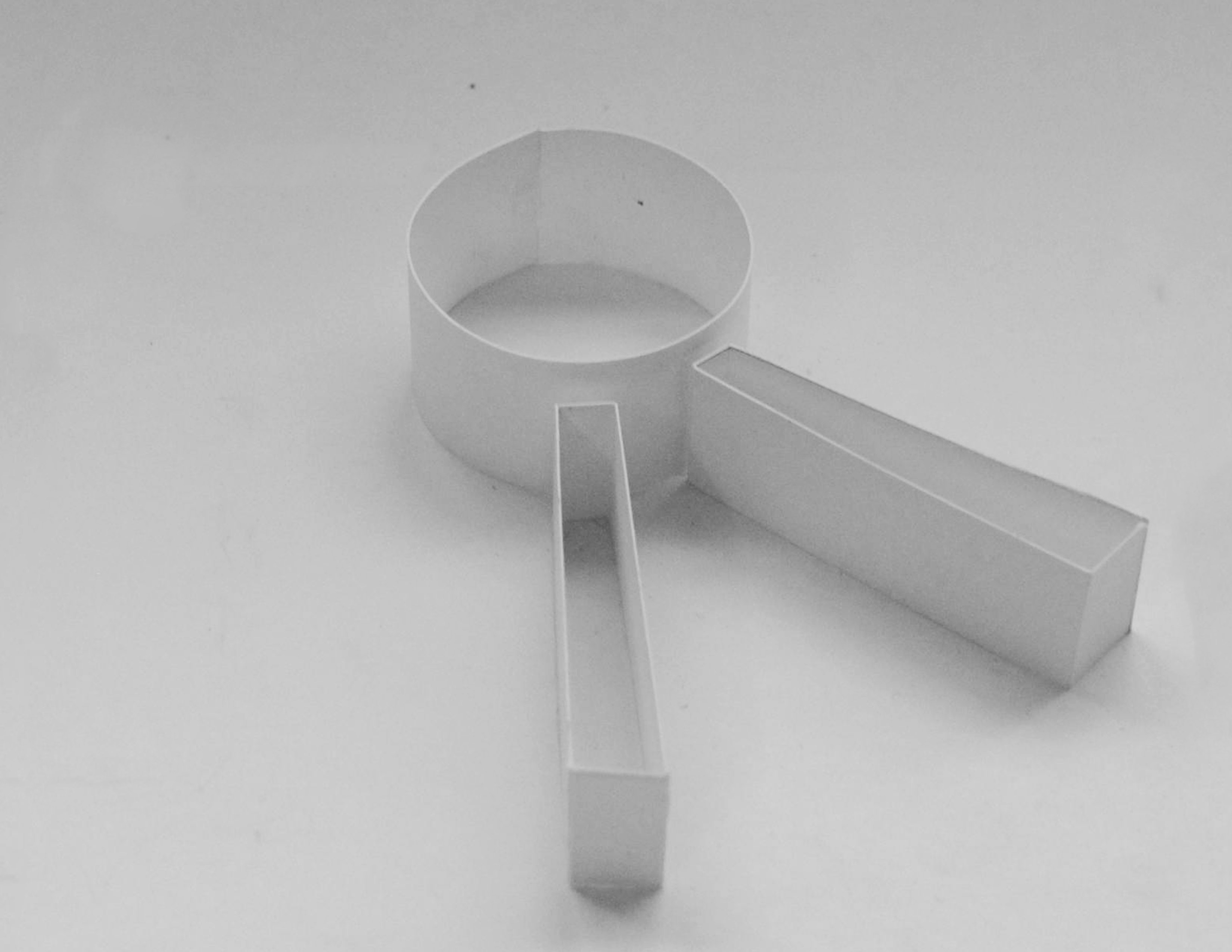

Model 03 represents different paths that converge into one area.

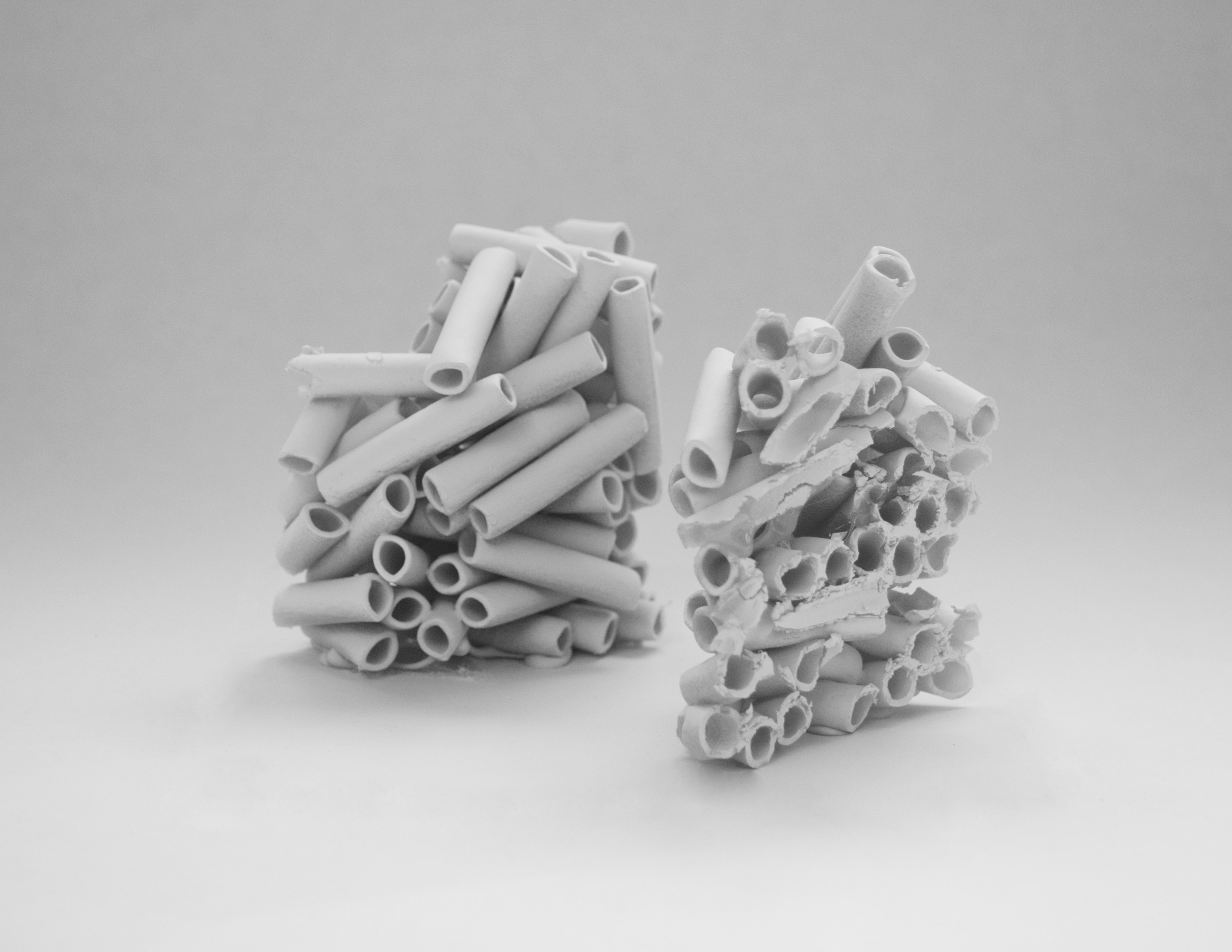

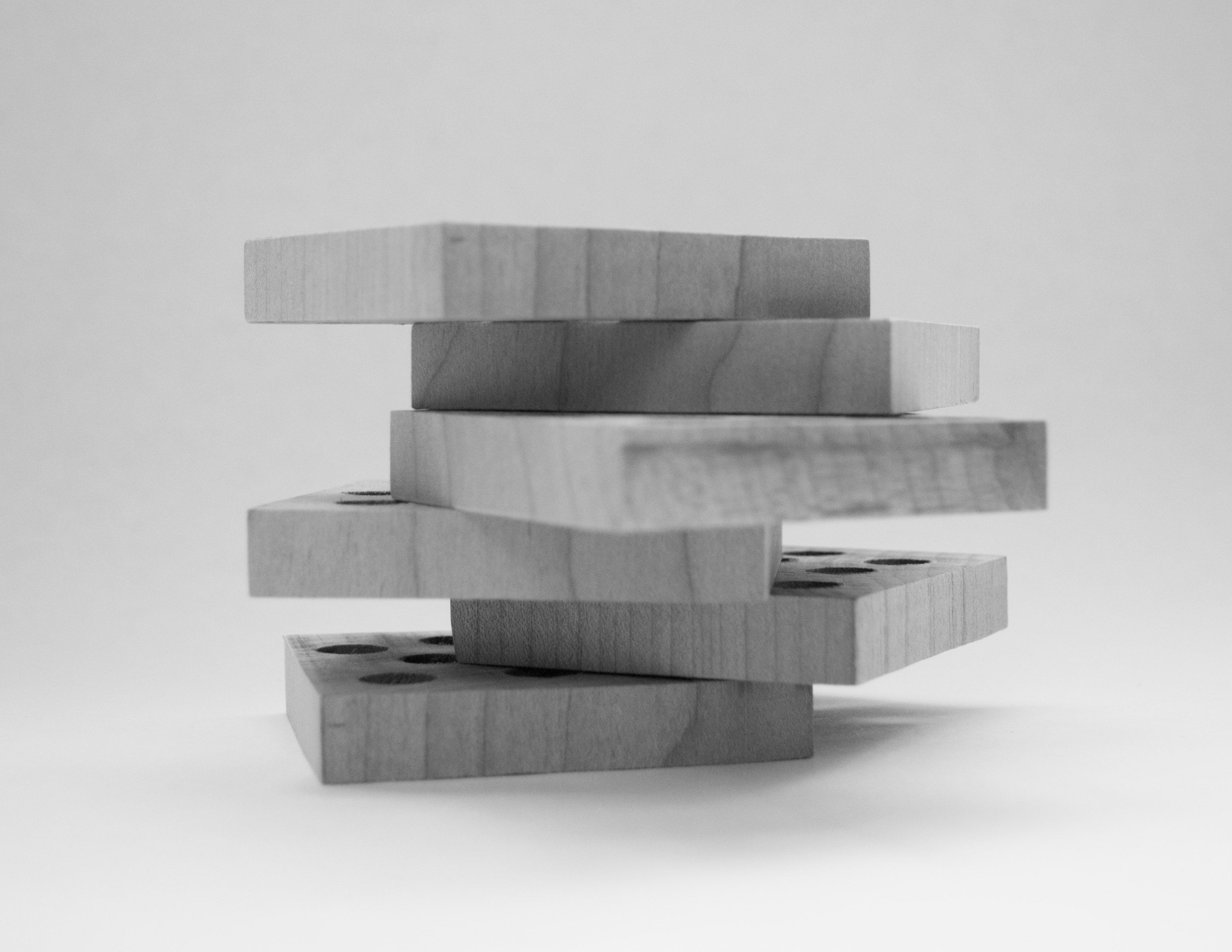

Model 04 represents the stacking effect with circulation being cut off and connecting depending on placement.

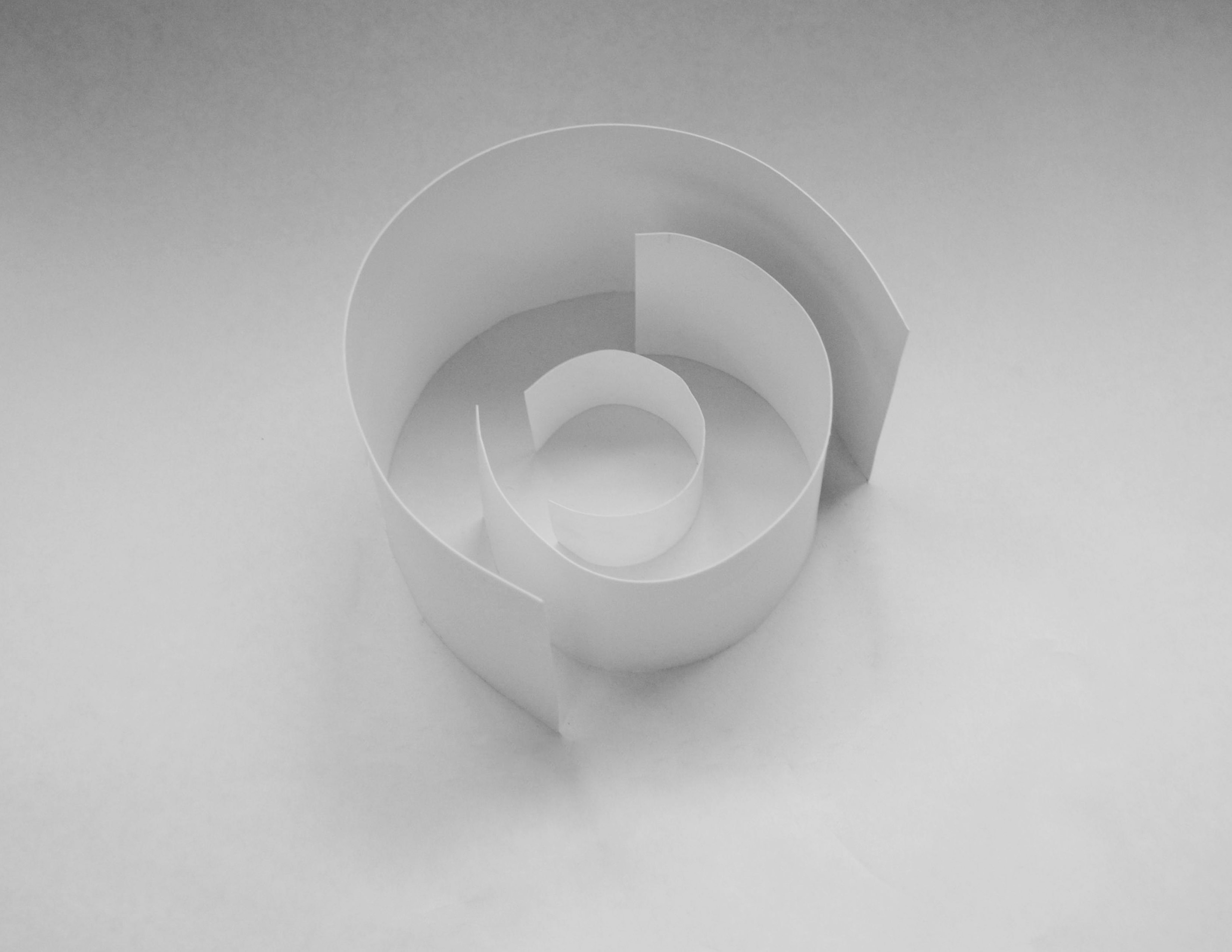

Model 05 represents contained circulation and the redirection of flow.
